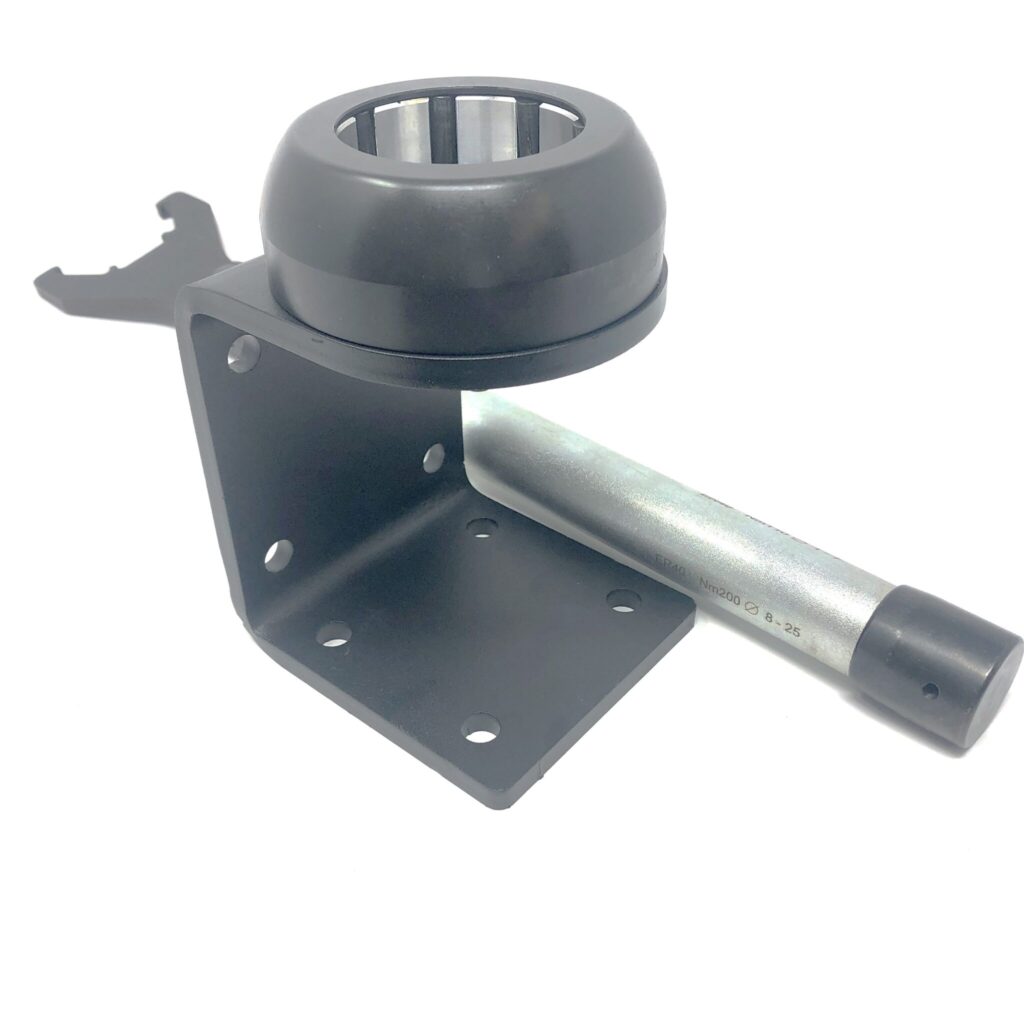

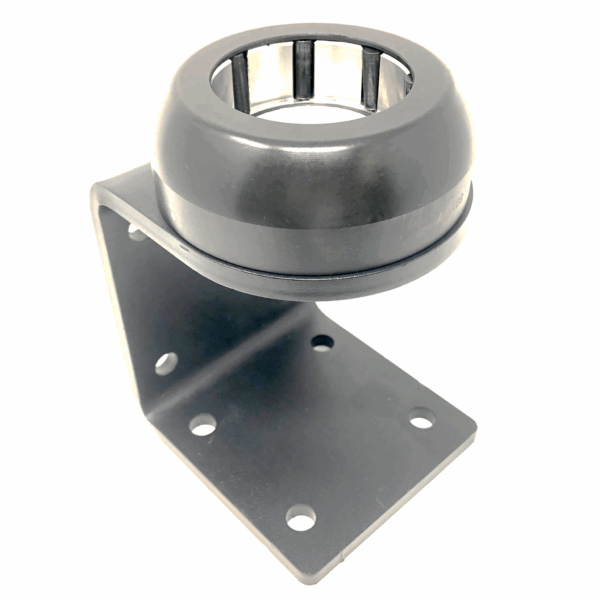

ISO30 Tool Tightening StandSpecifications: ISO30 Tool Tightening Stand: For 50 mm ISO30 Tool Holders Material: Steel Body with bidirectional roller bearings that lock in place when turned. Manufacturer: Made in Italy. Part No.: TTS-30 Recommended Torque: ER16 Hex Nut 42 ft/lbs under 1/16″ Collet I.D. 30 ft/lbs over 1/16″ Collet I.D. ER16 Slotted Nut 42 ft/lbs under 1/16″ Collet I.D. 30 ft/lbs over 1/16″ Collet I.D. ER20 Hex Nut 59 ft/lbs under 1/16″ Collet I.D. 24 ft/lbs over 1/16″ Collet I.D. ER20 Slotted Nut 59 ft/lbs under 1/16″ Collet I.D. 24 ft/lbs over 1/16″ Collet I.D. ER25 Mini Nut 25 ft/lbs under 1/16″ Collet I.D. 25 ft/lbs over 1/16″ Collet I.D. ER25 Slotted Nut 100 ft/lbs under 1/16″ Collet I.D. 100 ft/lbs over 1/16″ Collet I.D. ER32 Slotted Nut 100 ft/lbs under 1/16″ Collet I.D. 100 ft/lbs over 1/16″ Collet I.D. ER40 Slotted Nut 130 ft/lbs under 1/16″ Collet I.D. 130 ft/lbs over 1/16″ Collet I.D. SYOZ 25 Hook Nut 90 ft/lbs under 1/16″ Collet I.D. 90 ft/lbs over 1/16″ Collet I.D. ISO30 Pull Stud 36 ft/lbs Maintenance: Protect from rust with rust preventative spray. Compatibility: All 50mm Diameter ISO30 Tool Holders
